Kain Anti Statis Poliester
Detail Produk
Twill Woven Polyester ESD Fabric
,5mm Grid ESD Fabric
,108ohms ESD Fabric
10e6ohm Antiestatica Cleanroom Conductive Lint Free Polyester ESD Aman Kain Anti-statis untuk Lab Coat
ESD Kain 5mm Grid (diverifikasi):AF0080
Deskripsi: Kain Polyester Woven ESD Anti-statis, 5mm Grid
Aplikasi:Perlindungan ESD di ruang bersih, pakaian kerja
Fitur:
1) Ini juga disebut"silika konduktif" dan mengadopsi filamen poliester khusus dan benang konduktif berkualitas tinggi
2) Digunakan untuk menjahit pakaian fungsional ESD, yang menawarkan ketahanan yang baik terhadap statis, bahan kimia dan abrasi.
3) Ini dirancang untuk kamar bersih Kelas 1000 dan lebih tinggi.
4) Dan ini berlaku dalam elektronik, medis, biologi, optik, industri penerbangan ruang angkasa dll
5) Memenuhi standar ESD EN 1149-1:2006, keberadaan permukaan di bawah 107ohm
Spesifikasi:
| Spesifikasi | Nilai | Metode pengujian |
|---|---|---|
| Bahan | 98% Polyester 2% Serat Karbon | |
| Warna yang Tersedia | Semua | |
| Konfigurasi Karbon | Grid 5mm | |
| Lebar (cm) | 150 | |
| Berat (gr/m2) | 115 ~ 120 | |

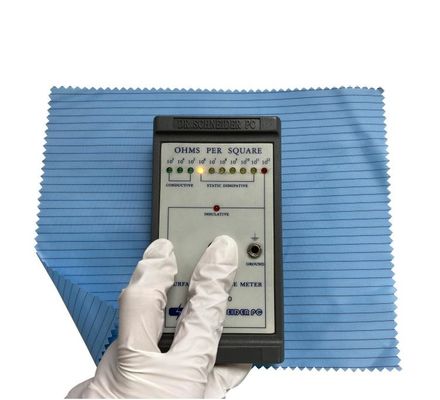

| Resistensi permukaan (ohm/unit) | 106~ 109 | |
| Biaya gesekan (V) | < 150 | |
|
Jumlah benang (menolak) Warp Rumput |
100 100 |
|
| Gaya tenun | Twill 1/2 | |
| Permeabilitas udara (cc/cm2/detik) | 30 | |
| Kelas Kamar Bersih yang Direkomendasikan | Kelas 1000 ~ 10000 |
-
1/2 Twill 5mm Grid 98% Polyester 2% Carbon Antistatic Clothing
5mm Grid 98% Polyester+2% Carbon Anti-static Clothing ESD Fabric Anti Static Fabric Description: ESD Anti-static fabric is ideal for clean room environment,ESD fabric can protect people from and potential risks to be exposed in dangerous and harmful chemicals and will also provide you with particle and ESD safe working circumstances at the same time. Anti-static ESD Fabric Material: 98%Polyester+2%Carbon Fiber Color: White/yellow/blue/red/green etc.Customizable colors Use: -
110GSM Anti Static Polyester Carbon ESD Bahan Pakaian
High Quality Polyester Carbon Anti Static ESD Fabric Clothing Fabric Antistatic Fabric Description: ESD Anti-static fabric is ideal for clean room environment, ESD fabric can protect people from and potential risks to be exposed in dangerous and harmful chemicals and will also provide you with particle and ESD safe working circumstances at the same time. Anti-static ESD Fabric Material: 99%Polyester+1%Carbon Fiber Color: White/yellow/blue/red/green etc.Customizable colors Use -
Bahan Polo Shirt ESD 4mm Stripe Anti Statis 99% Poliester 1% Karbon
99% Cotton 1% Carbon Fiber 4mm Stripe ESD Antistatic Cotton Knitted Polo Shirt Fabric Antistatic POLO Shirt / T-Shirt Fabric Description: Material: 99% Polyester 1% Carbon Fiber Available Colors: red ,customized other color Carbon Configuration: 4mm Stripe Width (cm): 150cm Weight (gr/sqm): 135 gr/sqm Surface Resistivity (ohm/unit): 10e6 ~ 10e9 Friction charges (V): -
Polyester Spandex Carbon Fiber Rajutan Rib Anti Static ESD Fabric
Garment Accessories Polyester & Carbon Fiber Knitted Rib Anti-static ESD Fabric Knitted Rib Anti-static ESD Fabric Description: Anti-static Tela ESD Fabric Material 93% Polyester +5% Spandex +2% Carbon Fiber Available Color Gray / blue Width 7 cm ( 5-12cm for options if custom) Weight 280 gr/sqm ( 200-800gsm for options if custom) Weight 115 ~ 120 gr/sqm Surface Resistivity 10e6 ~ 10e7 ohm/unit Friction charges
