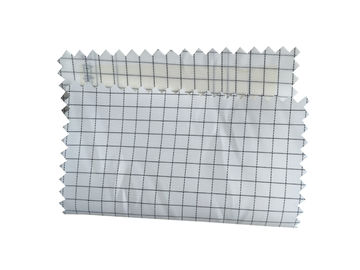

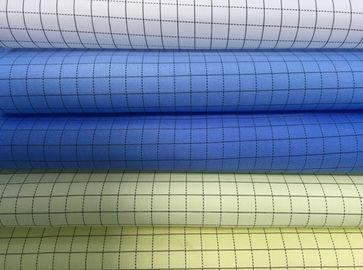

Clean Room ESD Fabric Woven Polyester Fabrics 5mm Grid Putih Biru Warna Kuning
Properti Dasar
Tempat Asal:
Cina
Nama Merek:
allesd
Sertifikasi:
ISO/SGS
Nomor Model:
AF0080
Properti Perdagangan
Jumlah Pesanan Minimum:
Dapat dinegosiasikan
Harga:
Bisa dinegosiasikan
Ketentuan Pembayaran:
T / T
Kemampuan Pasokan:
1.500.000 meter per bulan
Ringkasan Produk
Clean Room ESD Fabric Woven Polyester Fabrics 5mm Grid Putih Biru Warna Kuning ESD Fabric 5mm Grid (Diperiksa):AF0080 Deskripsi: Kain Poliester Tenun ESD Anti-statis, Kotak 5mm Aplikasi:Perlindungan ESD di kamar bersih, pakaian kerja Fitur: 1) Ini juga disebut "sutra konduktif", dan mengadopsi ...
Detail Produk
Menyoroti:
kain anti statis
,kain pelepasan elektrostatik
,Kain ESD 5mm Grid
Material:
98% Poliester 2% Serat Karbon
Color:
SEMUA
Width (Cm):
150
Weight (Gr/Sqm):
115
Weave Style:
Twill 1/2
Surface Resistivity:
106 ~ 109ohm
Deskripsi Produk
Clean Room ESD Fabric Woven Polyester Fabrics 5mm Grid Putih Biru Warna Kuning
ESD Fabric 5mm Grid (Diperiksa):AF0080
Deskripsi: Kain Poliester Tenun ESD Anti-statis, Kotak 5mm
Aplikasi:Perlindungan ESD di kamar bersih, pakaian kerja
Fitur:
1) Ini juga disebut "sutra konduktif", dan mengadopsi filamen poliester khusus dan benang konduktif berkualitas tinggi
2) Jenis pakaian/topi/sepatu bot/masker wajah ini yang dijahit dengan kain esd, menawarkan ketahanan yang baik terhadap listrik statis, bahan kimia, dan abrasi.Ini dirancang untuk kamar bersih Kelas 1000 dan lebih tinggi.Dan itu berlaku dalam elektronik, medis, biologi, optik, industri penerbangan luar angkasa dll
3) Memenuhi standar ESD, ketahanan sistem 106-109ohm
Spesifikasi:
| spesifikasi | Nilai | Metode Tes |
|---|---|---|
| Bahan | 98% Poliester 2% Serat Karbon | |
| Warna yang tersedia | Semua | |
| Konfigurasi Karbon | kisi 5mm | |
| Lebar (cm) | 150 | |
| Berat (gr/meter persegi) | 115~120 | |
| Resistivitas Permukaan (ohm/unit) | 106~ 109 | |
|
Muatan gesekan (V) |
<200 |
|
|
Jumlah benang (denier) Melengkung Pakan |
100 100 |
|
| Gaya menenun | Twill 1/2 | |
| Permeabilitas udara (cc/cm²/dtk) | 30 | |
| Kelas Kamar Bersih yang Direkomendasikan | Kelas 1000~10000 |
Seri 100D Kain Tenun ESD kami
| Model | spesifikasi | Jumlah Benang | Bobot | Kepadatan | Kepadatan muatan | Tegangan Gesekan |
| AF0060 | Strip 5mm | 100D48F * 100D48F | 110-115g/m2 | 165*82 ujung/inci | 1.2uc/m | <300V |
| AF0064 | Strip 10mm | 100D48F * 100D48F | 110-115g/m2 | 165*82 ujung/inci | 1.2uc/m | <300V |
| AF0080 | kisi 5mm | 100D48F * 100D48F | 110-115g/m2 | 165*82 ujung/inci | 0.8uc/m | <200V |
| AF0083 | Kotak 2.5mm | 100D48F * 100D48F | 115-120g/m2 | 165*89 ujung/inci | 0.8uc/m |
<150V |
